Specifications

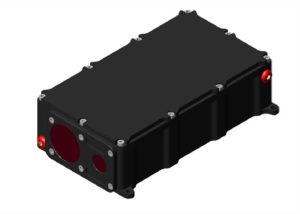

The RangePRO Model GSLR-1K is a compact OEM laser rangefinder module providing an advanced digital rangefinding capability for military, paramilitary and commercial applications. All assemblies are integrated onto a precision bore-sighted platform.

OEM module for integration into sensing, surveillance, tracking & weapons stations, and thermal imaging cameras.
For land, sea or airborne applications.
Designed to withstand vibration, shock, and extended temperature operation, EM shielded.

Read-out limits (factory selectable)

Minimum 50
Maximum 10,000

Performance*

man (0.45×1.8m)** 2,000
small (1×2.1m)** 2,500
vehicle (2.3×2.3m)** 4,000
building (large)** 7,500
*Standard Clear atmosphere; Extinction Coefficient 0.0448 @ 1,570nm
(Modtran 3 V1.5; tropical atmosphere, maritime aerosols, Jan.);
sea level visibility = 23.5km.
** Target albedo = 0.1 @ 1,570nm.

Hermetic

  • Class 1 eyesafe***
***AS/NZS IEC60825.1 2011.

Length 127mm
Width 79mm
Height 34.5mm
Mass 0.365kg

Signals from the detector are digitally sampled and examined to determine all potential real target returns. An adaptive range threshold compensates for changing noise levels, maximizing system capability under varying conditions.

9 to 9Vdc input

RS-422 19,200 Baud

3-point mount; guide pins.

LaserDyne RangePro GSLR-1K Datasheet
